SOLAR LTO SENSOR NODE

Overview

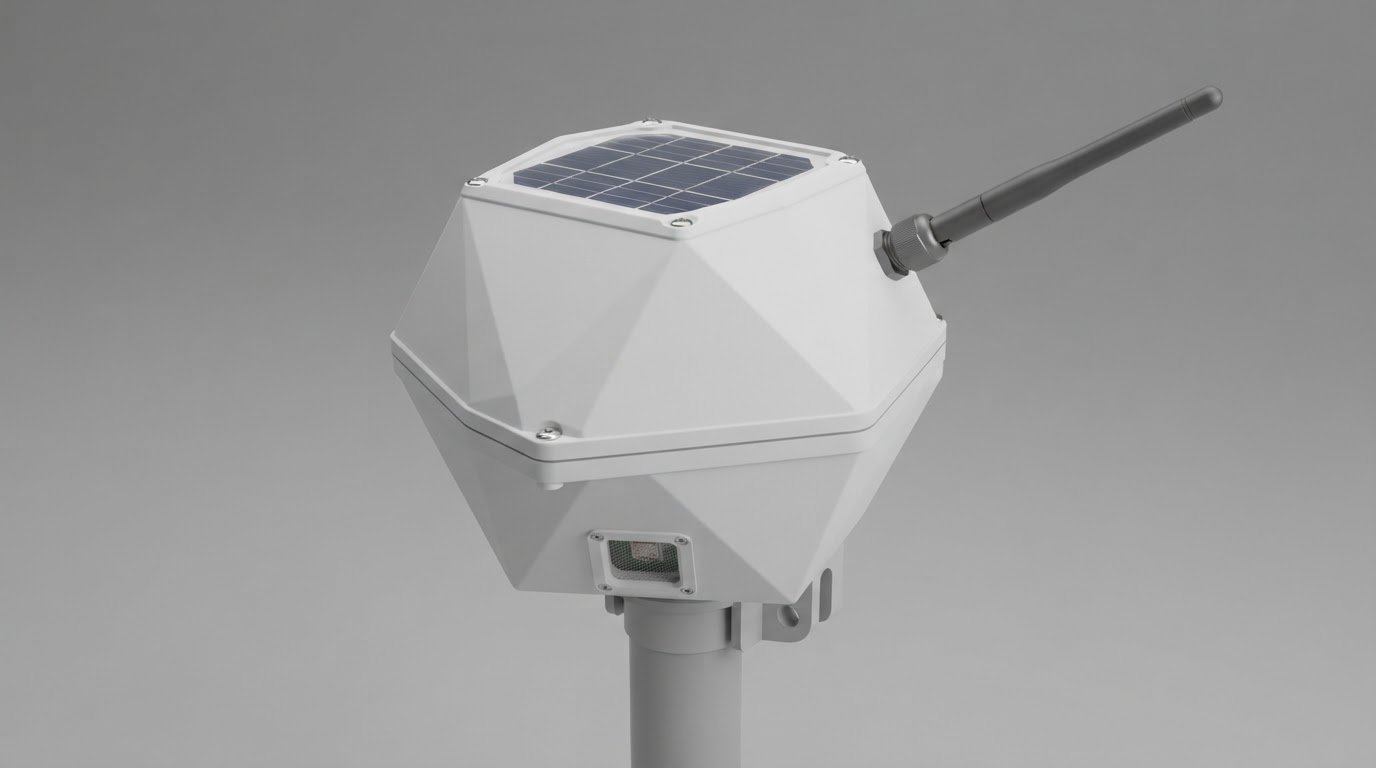

Constructed inside a compact, weatherproof polycarbonate enclosure, this solar-powered environmental monitor uses a BME680 sensor to track localized climate metrics. The system leverages a low-power LoRaWAN microcontroller, sub-GHz radio, and LTO battery charged via MPPT to sustain ultra-low-power deep sleep cycles indefinitely.

Hardware

Schematic (pin-out)

Component pin-outs with nets routed to named pins from the design configuration. Download PDF | Open full schematic | SVG

Mechanical Connections

Assembly joints and enclosure mounts (not electrical pin-outs). Source data (JSON) | PDF

CAD model

3D CAD viewer will appear here when a model.glb (or model.gltf) is added to this project folder.
