V1 - 18-channel handheld reality scanner 		Type Hardware Design
Portfolio Projects

Overview

An 18-channel handheld scanner that generates structured reality tokens by fusing 3D point-clouds and environmental data with spectral material classifications. The system integrates an RGB-D ToF camera, an AS7265x VNIR spectral triad, custom LED calibration arrays, and USB-PD battery management on a custom carrier board.

Original hardware revision. The upgraded design is Global Tokenizer V2.

Hardware

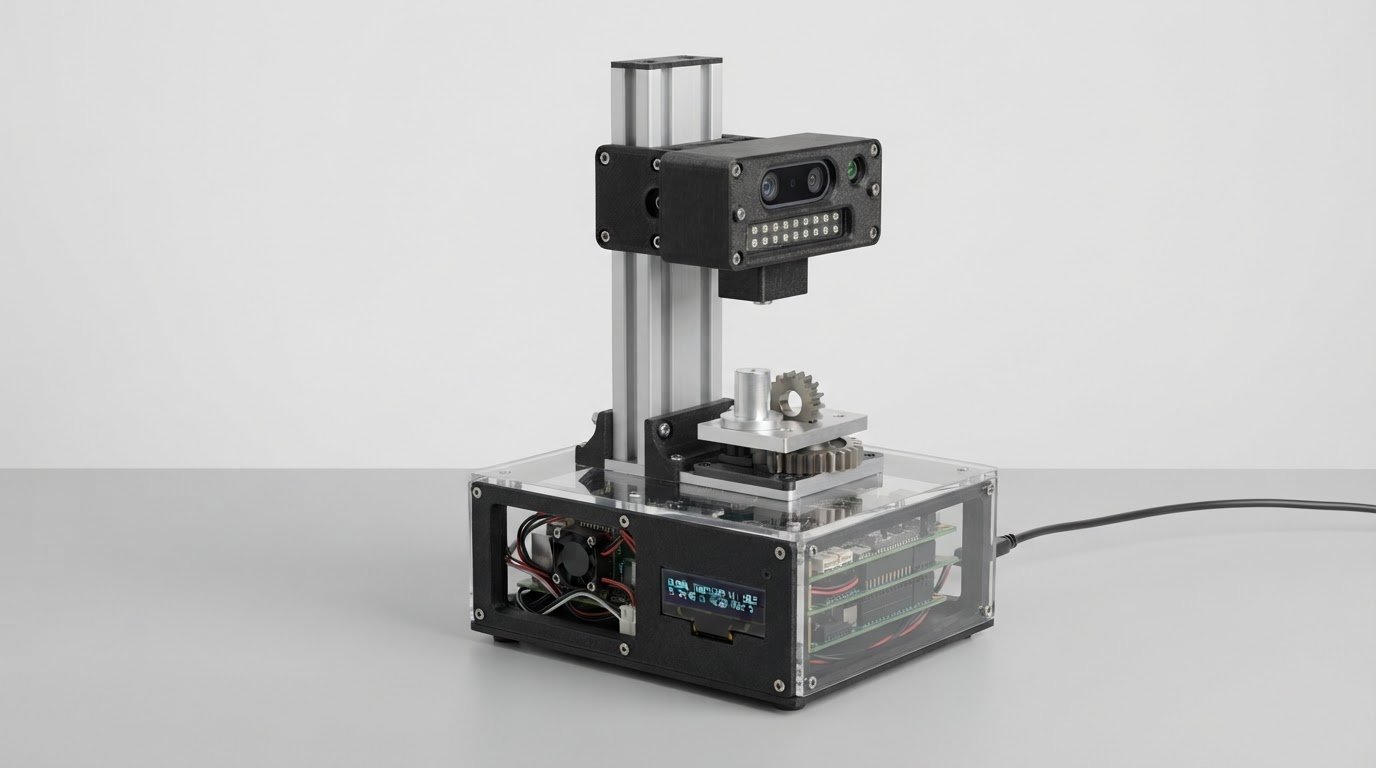

Global Tokenizer hardware
Global Tokenizer

Schematic (pin-out)

Component pin-outs with nets routed to named pins from the design configuration. Download PDF | Open full schematic | SVG

Mechanical Connections

Assembly joints and enclosure mounts (not electrical pin-outs). Source data (JSON) | PDF

CAD model

3D CAD viewer will appear here when a model.glb (or model.gltf) is added to this project folder.
